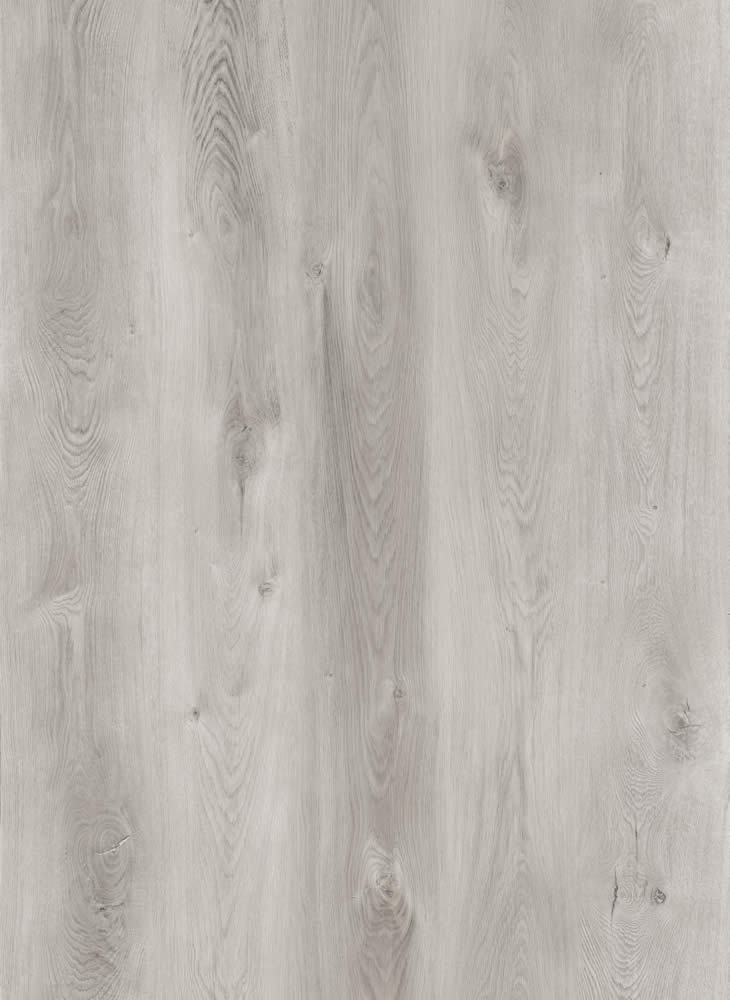

AA001 Lake Lanier

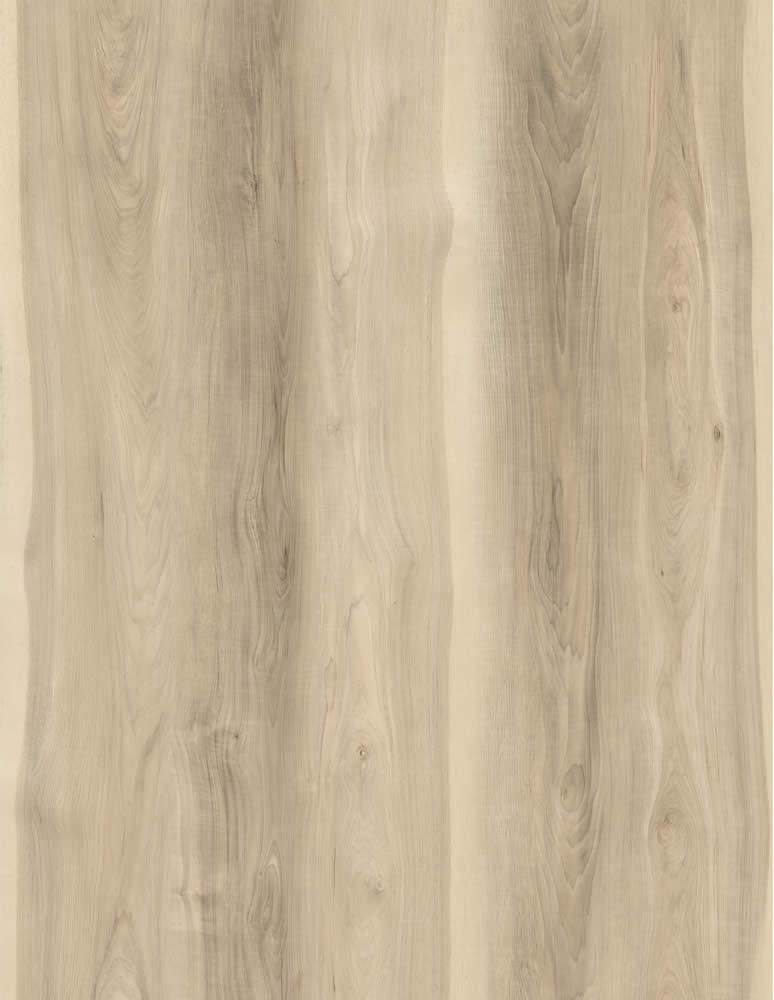

AA002 Kaneohe Bay

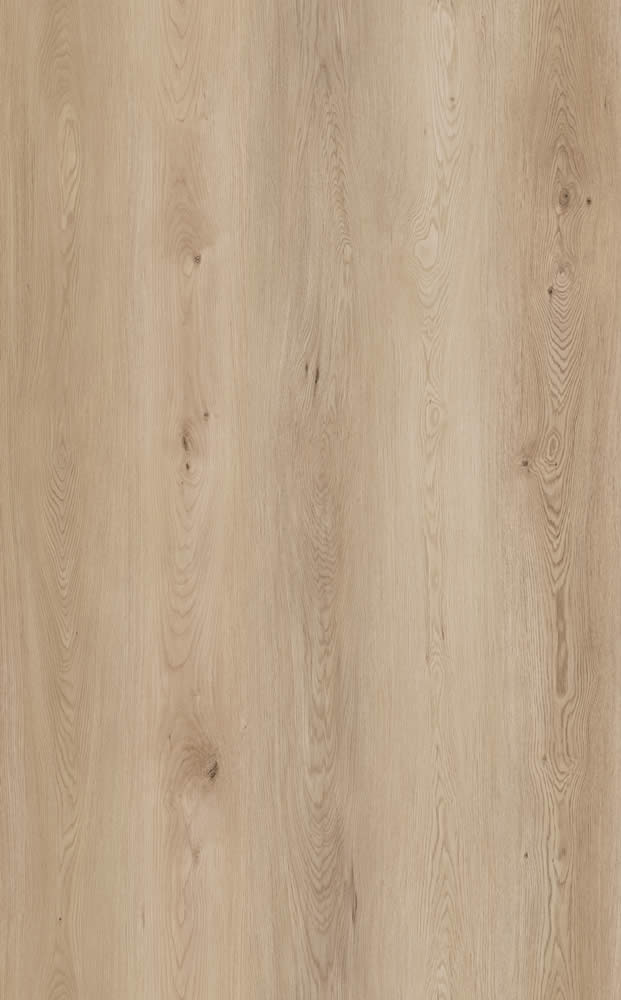

AA003 Mount Pleasant

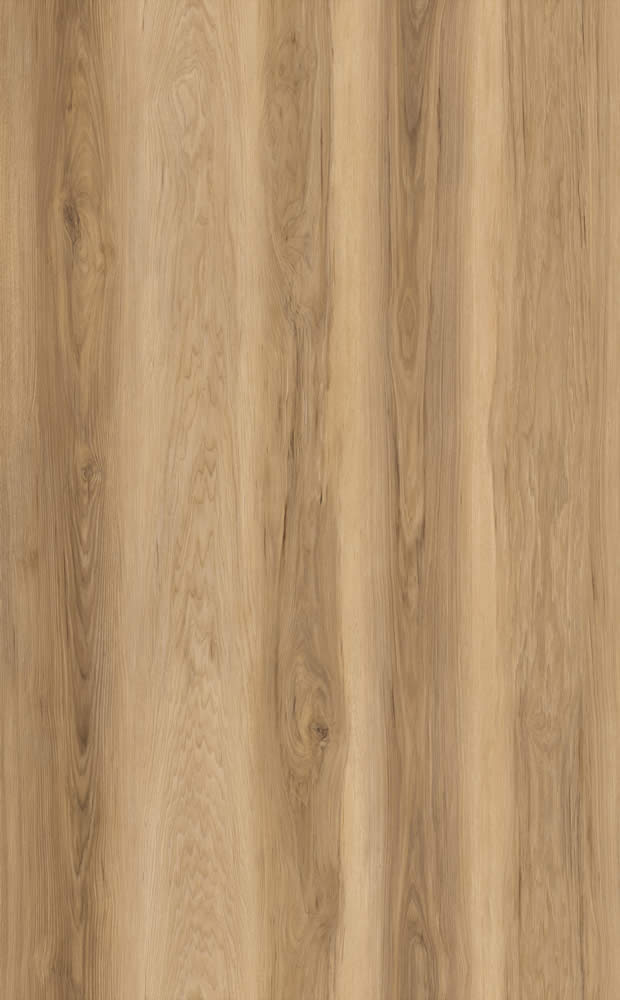

AA004 Carolina Hickory

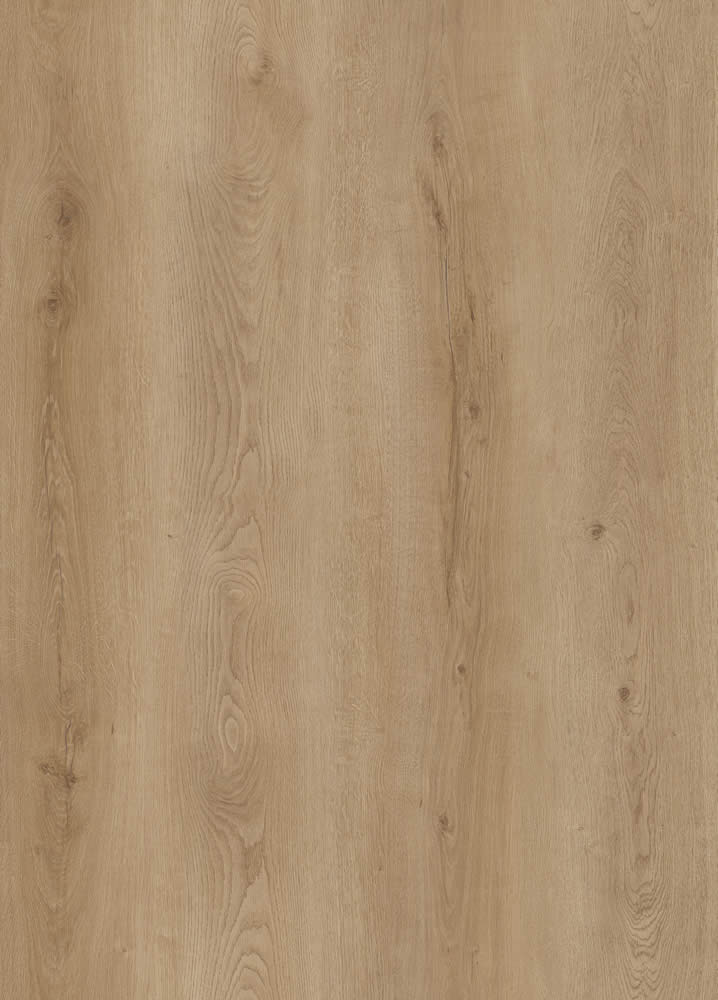

AA005 Monterrey

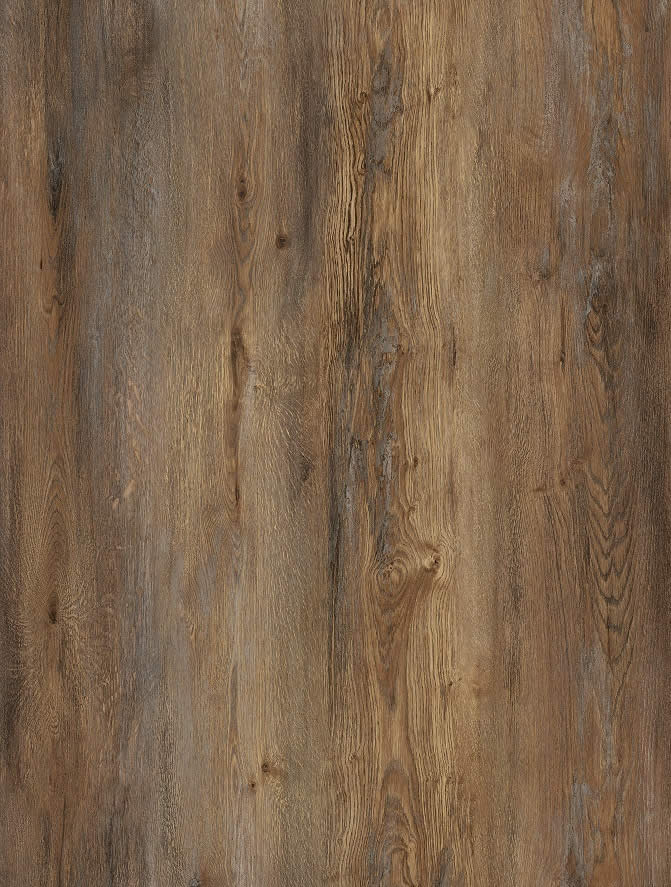

AA006 Brookfield

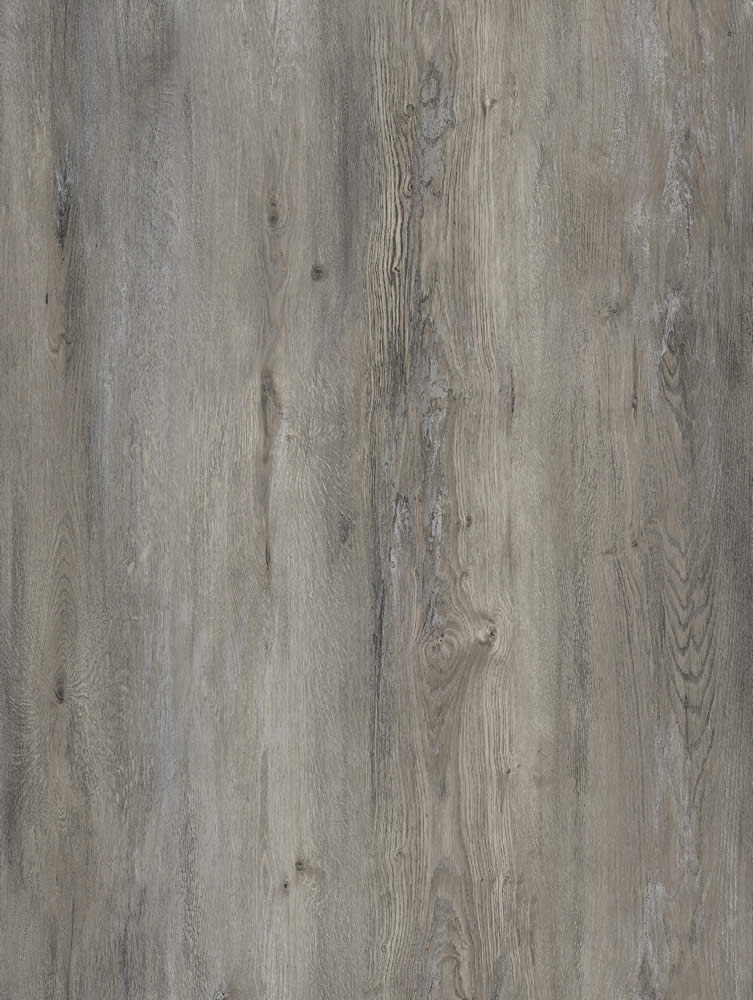

AA007 Placid Cabin

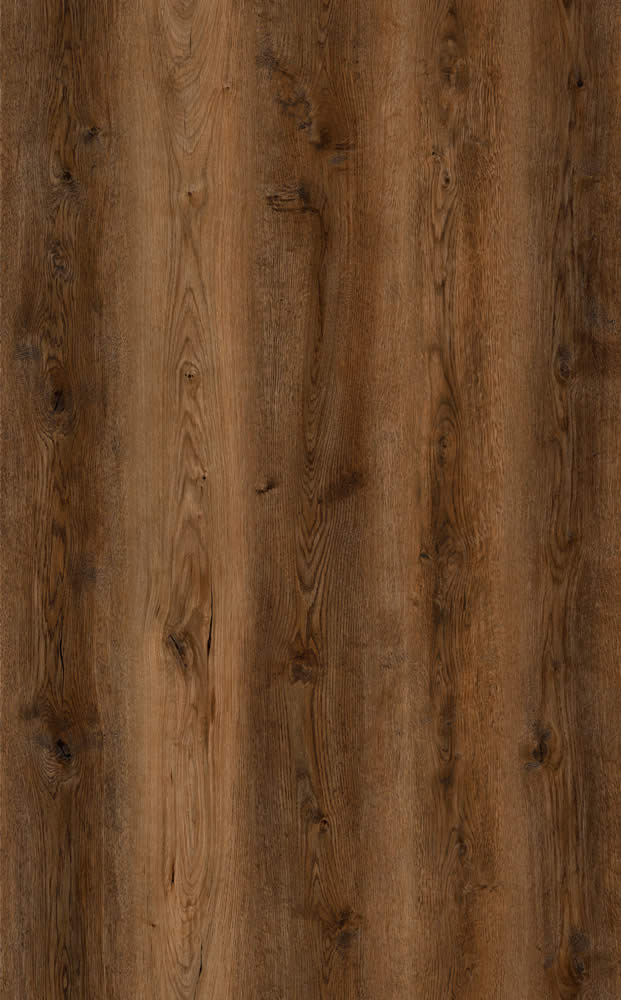

AA008 Berkley Oak
| Length | 60" | Width | 9" |
| Thickness | 6.5mm | Wear Layer | 22mil |
| Finishing | Wood Emboss | Edge Description | Micro Bevel |
| Sqft/Box | 22.44 | lb/Box | 48.27 |
| Box/Plt | 52 | Sqft/Plt | 1167 |
| lb/Plt | 2545 | Plt/FTL | 17 |
| Limited Residential Warranty |
Life Time | Limited Commercial Warranty |
15 Years |
| Items | Standards | Requirements | Result |
| GreenGuard Gold Certified |
UL 2818 - 2013 Gold Standard for Chemical Emissions for Building Materials, Finishes and Furnishings | Refer to Standards | Pass |
| Floorscore Certification |
SCS-EC10.3-2014v3.0 | Refer to Standards | Pass |
| CE Certification | EN14041 | Refer to Standards | Pass |
| Fire resistance | EN 9239-1 EN ISO11925-2 EN 13501-1 |
Critical Fluxf≥8.0kW/m2 Fs≤150mm within 20s Smoke≤750% minutes |
Bfl-S1 |
| Phthalate tests (DBP/BBP/DEHP/DINP/ DNOP/DIDP) |
EN 14372:2004 | N/A | Free |
| Dimension stability | ASTM F2199-09(R2014) | ≦0.25% | Manufacturing direction:-0.046% Across-manufacturing direction:-0.009% |
| Seam strength | EN 684:1995 | N/A | Ave.:360N/50mm Pass Min.:330N/50mm |
| Residual indentation (%) | ASTM F1700-13a & ASTM F1914-07(2011) |
Average value≦8 Individual value≦10 |
0.4 Pass |
| Resistance to chemicals | ASTM F1700-13a & ASTM F925-13 |
No more than a slight change in surface dulling,surface attack,or staining | No change in surface dulling,surface attack,or staining was detected |
| Heat stability | ASTM F1514-03(R2013) | △E*ab< 8 | △E*ab=0.67 Pass |
| Static loading | ASTM F970-17 | N/A | 0.04mm Pass |
| Soluble heavy metal contents test | ASTM F963-16(Clause 8.3) | N/A | Free |
| Large ball impact resistance | NALFA/ANSI LF-01-2011 | N/A | No cracks or fractures occurred at the height of 2500mm |
| Static Electrical Propensity | EN 1815:2016 method A | ≦2kV | 0.2kV |
| Sound Transmission Class | ASTM E90-2009(R2016) ASTM E413-10 |
N/A | STC=68 |
| Formaldehyde | ISO 17226-1:2008 | N/A | Free |
| Surface Bond | NALFA/ANSI LF-01-2011 | N/A | 1.14MPa Pass |
| Resilient floor covering Determination of peel resistance | EN ISO 24345:2012 | ≥54N/50mm | Longitudinal direction:95N/50mm Cross direction:95N/50mm |
| Castor chair Resistance(25000 Cycles) | NALFA/ANSI LF-01-2011 ISO4918:2016 |
N/A | No damage was found after test |
| Thermal conductivity | EN 12667:2001 | N/A | 0.154 W/(m.K) |
| Thermal Resistance | EN 12667:2001 | N/A | 0.033(m2.K)/W |
| Colour Fastness | EN ISO 105-B02:2014 | N/A | Grade 6 |
| Curling | ISO 23999:2008 | N/A | Average: 0.5mm Pass |
| Locking strength | ISO 10582:2017 Annex D | Class 32, type I:≥1.5kN/m |
Long side(X): 7.6 kN/m Short side(Y): 6.3 kN/m Pass |
| Resistance to staining | ISO 26987:2008 | N/A | Index 0: Not affected Pass |
| Slip resistance (oil-wet ramp test) |
DIN 51130:2014-02 | N/A | Critical angle of inclination: 14.8°Classification: R10 Pass |
| Resistance to bacteria | ISO 846-1997 Method C | N/A | Assessment of bacteria growth: 0 Pass |
| Scratch Resistance | EN 16094B | ＞2,500g | 3,500g |
